2x Phoenix Gold GX12D4 12" Subwoofers, Z6001i Amplifier, Dual Sealed Box & Wiring Kit

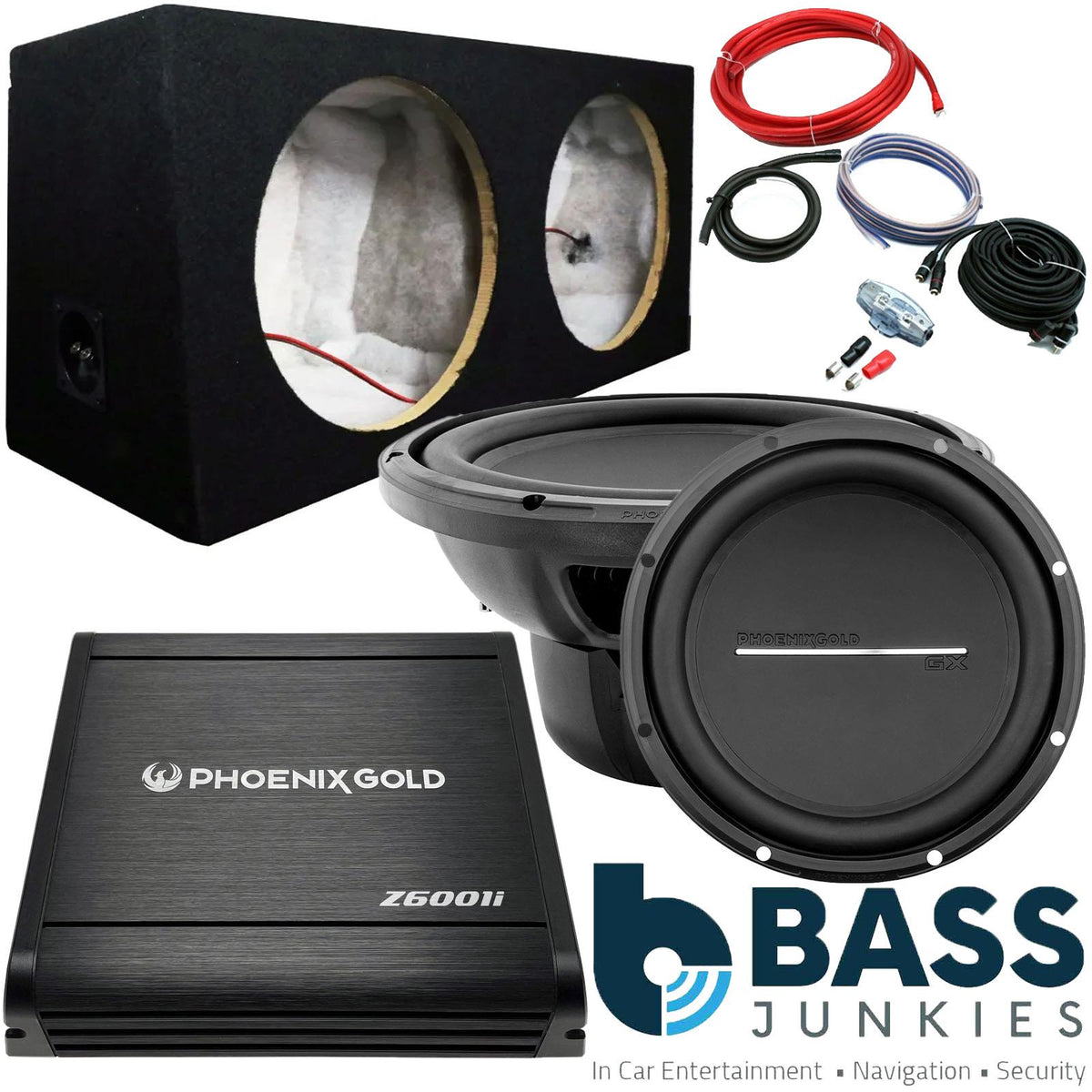

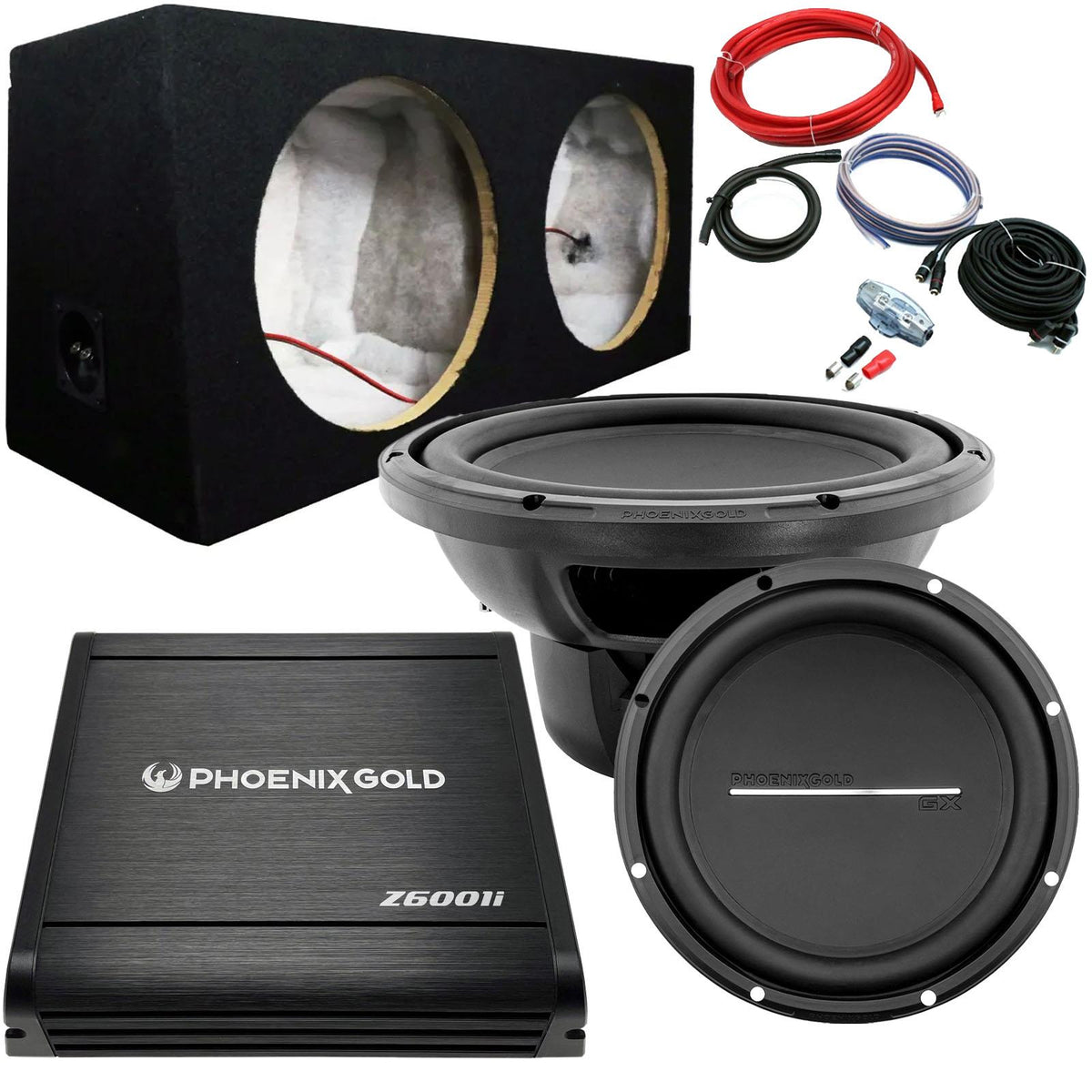

Build a powerful twin-subwoofer system with this complete Phoenix Gold bass package. The kit includes two GX12D4 12-inch dual voice-coil subwoofers, a Phoenix Gold Z6001i Class-D monoblock amplifier, a dual 12-inch sealed MDF enclosure and a Connects2 PRO-FOUR 4AWG amplifier wiring kit.
Each GX12D4 has two 4-ohm voice coils. Wiring each subwoofer’s coils in parallel creates 2 ohms per subwoofer. Connecting both subwoofers in parallel creates a final 1-ohm load, allowing the Z6001i amplifier to supply 600 watts RMS across the pair.
Package Includes
- 2 x Phoenix Gold GX12D4 12" dual 4-ohm subwoofers
- 1 x Phoenix Gold Z6001i Class-D monoblock amplifier
- 1 x 12SUBSDB dual 12" sealed MDF subwoofer enclosure
- 1 x Connects2 PRO-FOUR 4AWG amplifier wiring kit

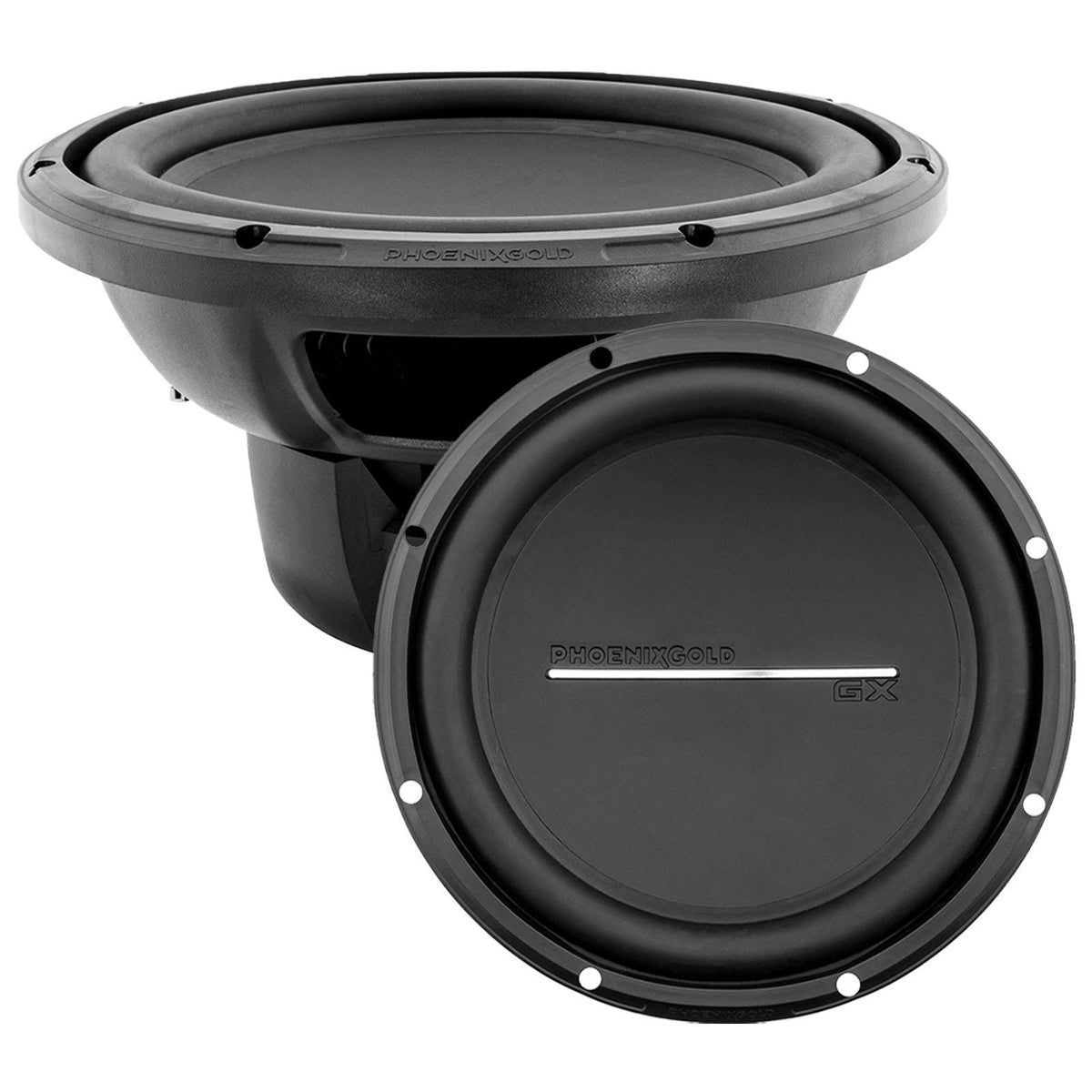

Phoenix Gold GX12D4 12" Subwoofers
The Phoenix Gold GX12D4 is a high-performance 12-inch subwoofer designed to produce powerful and accurate low-frequency sound. Its reinforced cone, long-throw suspension and vented motor structure help reduce distortion and maintain reliable performance at higher output levels.
This package includes two GX12D4 subwoofers with a combined nominal power handling of 800 watts and a combined peak power handling of 1600 watts.
- Quantity: Two subwoofers
- Subwoofer size: 12" / 30cm each
- Voice-coil configuration: Dual 4 ohm per subwoofer
- Nominal power handling: 400 watts each / 800 watts combined
- Peak power handling: 800 watts each / 1600 watts combined
- Frequency response: 30Hz–500Hz
- Sensitivity: 87.72dB
- Voice-coil diameter: 2.5" / 63.5mm
- Linear excursion: 9mm
- Overall diameter: 317.5mm
- Cut-out diameter: 285.75mm
- Mounting depth: 159mm
- Removable gasket compatible with the Phoenix Gold G112 grille
GX12D4 Subwoofer Features
- Dual-cone construction increases rigidity and helps reduce distortion
- Magnetic FEA high-efficiency motor design
- Vented motor improves heat dissipation and reduces motor compression
- Linear Surround Technology supports increased cone excursion
- Black-anodised voice-coil former assists thermal management
- CFL voice-coil technology improves structural strength
- MLB collar technology strengthens the cone and spider connection
- Double-looped and sleeved lead wires improve durability
- Push-type terminals with short-circuit prevention

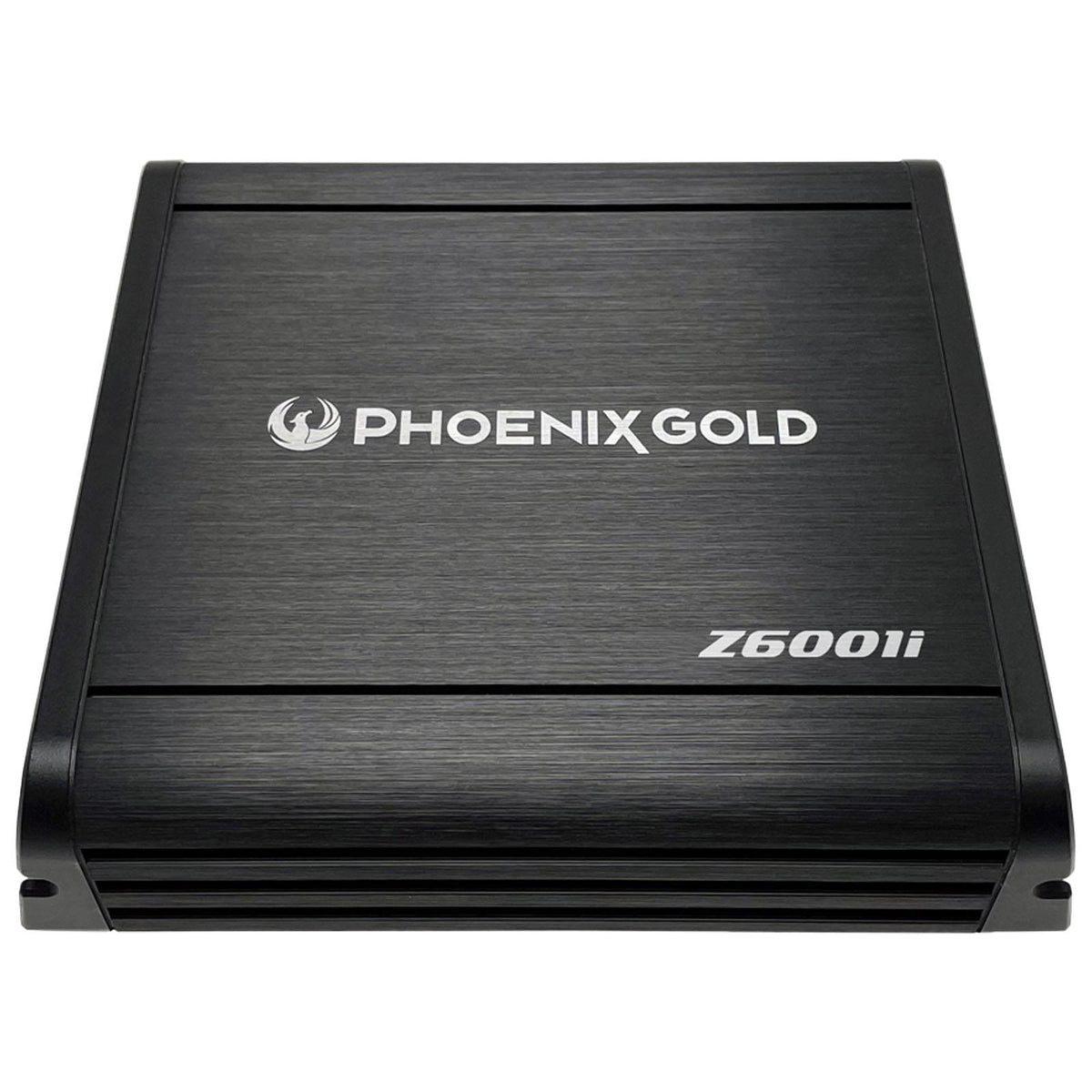

Phoenix Gold Z6001i Monoblock Amplifier
The Phoenix Gold Z6001i is a compact Class-D monoblock amplifier designed for powerful and efficient subwoofer amplification. It supports high-level and low-level inputs, allowing installation with compatible original factory radios or aftermarket head units.
- Amplifier type: Class-D monoblock
- Channels: 1
- Power output at 1 ohm: 600 watts RMS x 1
- Power output at 2 ohms: 400 watts RMS x 1
- Power output at 4 ohms: 250 watts RMS x 1
- Frequency response: 20Hz–400Hz
- Signal-to-noise ratio at full power: -84dB
- Total harmonic distortion: Less than 1%
- Low-pass filter: 50Hz–250Hz at 24dB per octave
- Subsonic filter: 10Hz–55Hz at 24dB per octave
- Bass boost at 45Hz: 0 to +18dB
- Input sensitivity: 0.25V–9.5V
- Adjustable phase control: 0–180 degrees
- High-level input through RCA connections
- Automatic signal-sensing turn-on
- Integrated cooling fan
- Remote bass controller included
- Four-way protection circuitry
- Two 30A amplifier fuses
- Maximum current draw: 57A
- Dimensions: 184 x 160 x 48mm
- Weight: 1.30kg

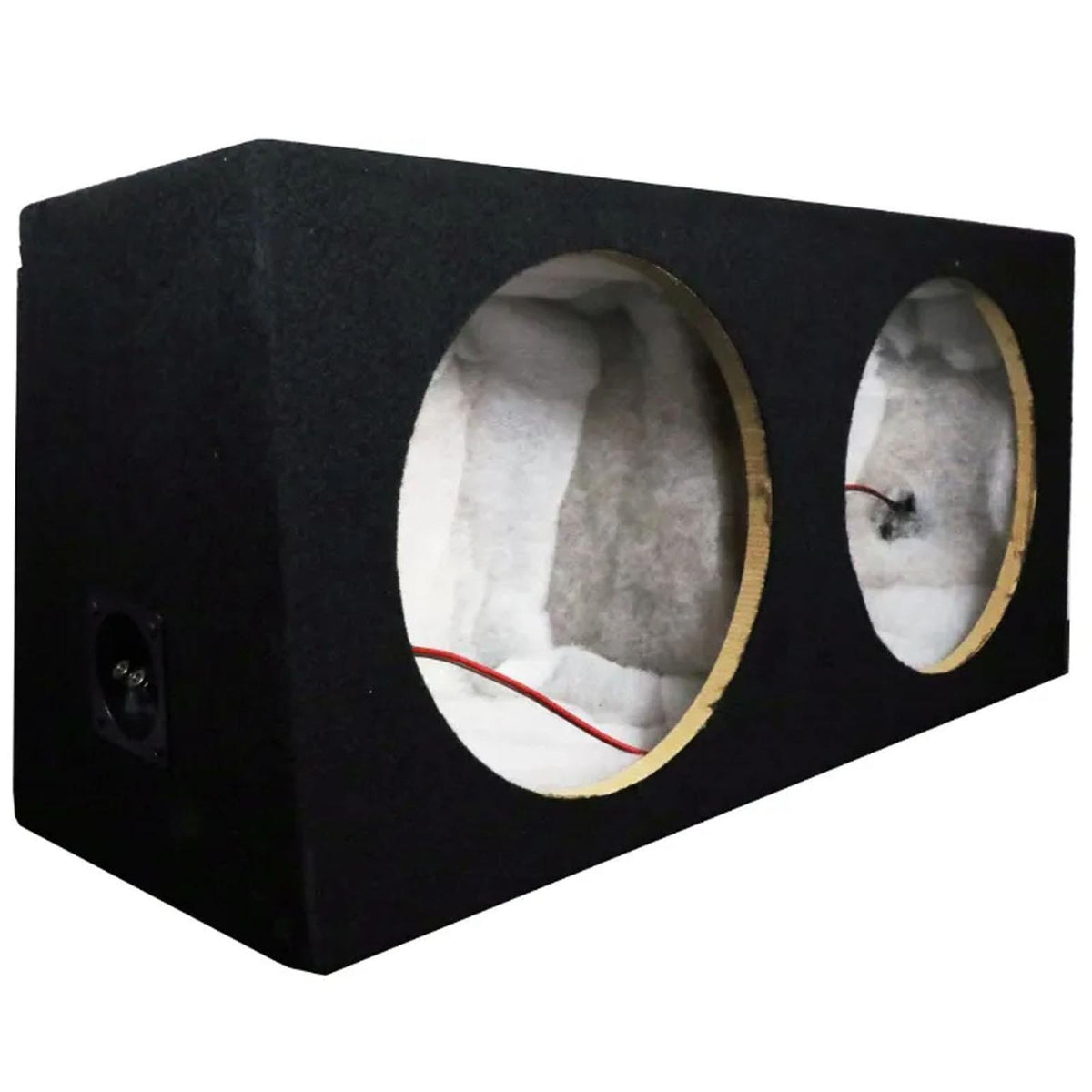

12SUBSDB Dual 12" Sealed Enclosure
The included dual enclosure is constructed from MDF and finished in black acoustic carpet. It provides two separate mounting positions for the included 12-inch subwoofers and uses a sealed design for controlled bass response.
This is a separate universal dual 12-inch enclosure supplied as part of the package. It has not been specifically manufactured or acoustically tuned exclusively for the GX12D4 subwoofers.
- Designed to accommodate two 12-inch subwoofers
- Dual sealed enclosure design
- Durable MDF construction
- Black acoustic carpet finish
- Integrated sound-absorbing foam
- Includes two 45cm lengths of 16AWG pure-copper speaker cable
- Product dimensions: 77 x 32 x 36cm
- Carton dimensions: 79 x 34 x 38cm

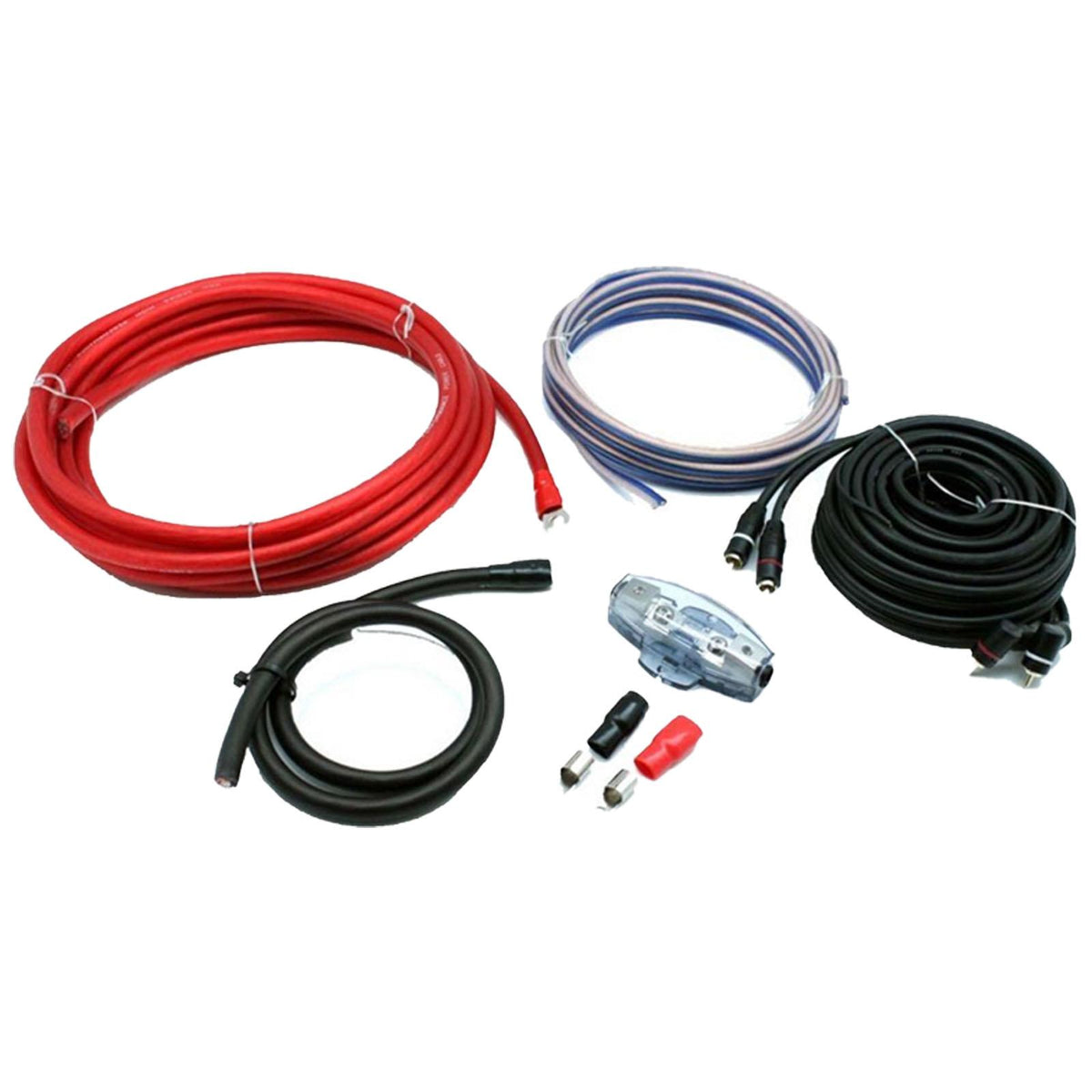

Connects2 PRO-FOUR 4AWG Amplifier Wiring Kit
The PRO-FOUR is a heavy-duty 4AWG installation kit containing the main power, ground, signal and speaker cables required to connect the amplifier and subwoofer system.
- 4AWG amplifier installation kit
- Rated up to 1000 watts
- 5.2m red power cable with fitted 10mm ring terminal
- 0.8m black ground cable with fitted 10mm ring terminal
- 5m blue and white 2.5mm speaker cable
- 5m RCA cable with integrated remote wire
- Gold-plated RCA connectors with straight and angled ends
- Waterproof nickel-plated Mini-ANL fuse holder
- 80A Mini-ANL fuse
- Two fork terminals with coloured covers
Recommended System Configuration
Wire the two 4-ohm voice coils on each GX12D4 in parallel to create a 2-ohm load per subwoofer. Connect both 2-ohm subwoofers in parallel to create a final 1-ohm load at the amplifier.
At 1 ohm, the Z6001i supplies 600 watts RMS across the two subwoofers. The subwoofers have a combined nominal power handling of 800 watts, providing suitable power-handling capacity for the amplifier.
Correct voice-coil wiring, amplifier gain, crossover and subsonic-filter adjustment are essential. Professional installation is recommended.
